Materials Innovations in 2D-filler Reinforced Dielectric Polymer Composites

Amjad Ali ¹ , Mirza Nadeem Ahmad ² , Tajamal Hussain ³ , Ahmad Naveed¹ , Tariq Aziz ⁴ , Mobashar Hassan ¹ , Li Guo ¹

1 Research School of Polymeric Materials, School of Materials Science & Engineering, Jiangsu University, Zhenjiang, 212013, China

2 Department of Applied Chemistry, Government College University Faisalabad, Faisalabad, Pakistan

3 School of Chemistry, University of the Punjab, Lahore, 54590, Pakistan

4 School of Engineering Yunqi Campus, Westlake University, Hnagzhou, Zhejiang , 310024, PR China.

Abstract

Polymer dielectric possess advantages of mechanical flexibility, low temperature processing, and cost. However, for practical applications dielectric constant of polymers is not high enough. To raise the dielectric constant, polymers are often composited with fillers of various morphologies (one-dimensional, two-dimensional, three-dimensional) and types (inorganic, organic, carbon, conductive, non-conductive). Recently discovered two-dimensional (2D) materials including graphene, transition metal dichalcogenides, MXenes, ferroelectric ceramics, etc. have been discovered. These materials have excellent electrical, mechanical, thermal properties and high specific surface area, which makes these ideal materials to reinforce the properties of polymers, especially dielectric properties. Here, in this review we summarize the latest developments regarding the use of 2D fillers to improve the dielectric properties of polymer composites. We have systematically discussed synthesis of 2D materials, processing of their 2D filler/polymer composites, theoretical background of dielectric properties of these composites, and literature summary of the dielectric properties of polymer composites with various type of 2D fillers.

Keywords

Polymer composites, Dielectric properties, 2D fillers, Graphene

INTRODUCTION

Among all the passive components (resistor, capacitors, and inductors), Capacitors call for special attention due to their applications in filtering, timing, A/D conversion, termination, decoupling, and energy storage materials. Dielectric materials are generally used for capacitor applications. Traditionally, inorganic materials have been used as the dielectric materials for energy conversion and storage. However, high temperature processing and mechanical brittleness have led to developments of alternate materials. Polymers are interesting dielectric materials due to their low temperature solution processing, low cast, large area processing, environmental stability, and mechanical flexibility. Due to these set of properties, 50% of market share belong to polymer based capacitors (Figure 1)¹. Apart from electronic industry, high-k poly?mer dielectrics? have found many applications ?in civilian and military applicationsincluding active vibration control, aerospace, underwater navigation? and surveillance, hydrophones, biomedical imaging, non-destructive testing and air imaging microphones. High-k poly?mer dielectrics have also been used as ?electromechanical devices to perform energy conversion between the electric and mechanical forms. These devices serve as artificial muscles, smart skins ?for drag reduction, actuators for active noise and vibration controls, and microfluidic systems for drug delivery and micro-reactors.^2-4

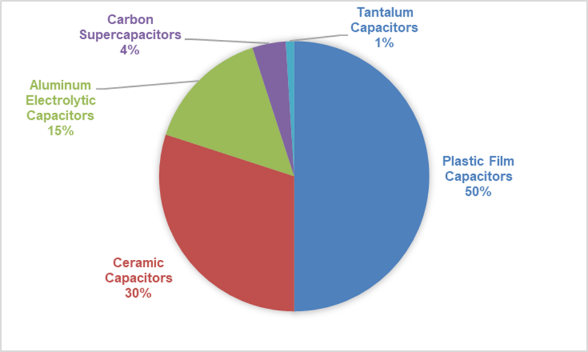

Figure 1: Market share of different materials based capacitors.¹

One of the most commonly used dielectric polymers is polypropylene (PP), which has high breakdown strength (E_b) (>700 V/m), low dielectric loss (<0.02%), and temperature- and frequency-independent dielectric constant with good mechanical strength. However, it has a low dielectric constant (k = 2.2), impeding widespread applications.^{5, 6} Some high dielectric constant polymers such as PVDF and its co-polymers have been fabricated which possess dielectric constant as high as 50.⁷ But still their dielectric constant is lower compared to dielectric ceramics. To improve the dielectric constant of polymers, fillers are successfully introduced into these polymers to raise their dielectric constants or electrical conductivity. These fillers include organic, metals, ceramics, and carbon based fillers.^8-20

Recently, a new class of materials, i.e., two-dimensional (2D) materials have been discovered. 2D materials have fascinating mechanical, thermal, and electrical properties, which are suitable for variety of applications.^21-31 Examples of 2D materials Include graphene (Gr), transition metal dichalcogenides (TMDCs), Mxenes, boron nitride (h-BN), black phosphorous (BP), etc. Family of 2D materials is growing fast and thousands of 2D materials have been predicted theoretically, while hundreds can be synthesized experimentally. Due to their high surface area, these materials are also very useful for the polymer composite application as they can interface with polymers more effectively for improvement of mechanical, electrical, and thermal properties.^{32, 33} Recently, there has been a great interest in 2D-filler based polymer dielectric composites.^34-36 In this review, we will summarize the latest developments related to use of 2D materials for polymer composites for dielectric applications.

SYNTHESIS OF 2D MATERIALS

2D materials can be synthesized by mechanical exfoliation, chemical vapor deposition (CVD), and wet chemical synthesis. Mechanical exfoliation is not scalable hence not suitable for the polymer composites. CVD growth was initially use for electronics applications, but recently, significant developments have been made for large scale growth and transfer of CVD growth, which render CVD grown 2D materials suitable for polymer composite applications.³⁷ Perhaps, the best 2D materials growth route for polymer composites application is wet chemistry, which can produce ton scale 2D materials at a low cost. However, quality of materials grown with wet chemistry is inferior to CVD grown materials. Below, we will summarize the synthesis techniques of 2D materials for the polymer composites applications.

Liquid phase synthesis

Liquid phase synthesis can be further divided into categories such as simple exfoliation, intercalation exfoliation and functionalization based exfoliation of 2D materials from bulk layered materials. Bulk layered materials have week van der Waals forces between layers, hence layered materials can be simply exfoliated by using external mechanical forces such as ultra-sonication in suitable solvent. A suitable solvent should have a matching surface tension with the solvent material. For example, exfoliation of graphite needs a solvent with surface tension of 40 mJ/m².³⁸ However, surface tension values can be fine-tuned using surfactants or/and by adding other solvents.^{39, 40} Variety of 2D materials including molybdenum sulfide (MoS₂), boron nitride (BN), tungsten sulfide (WS₂), tin sulfide (SnS), black phosphorous (BP), molybdenum selenide (MoSe₂), etc., in various solvents such as N-methyl-pyrrolidone (NMP), acetone, N, N-dimethylformamide (DMF), N-vinyl-pyrrolidinone (NVP), isopropanol (IPA), and dimethylsulphoxide (DMSO).^{31, 38, 41, 42} For example, shear mixing/ultra-sonication of graphite in NMP yielded high quality Gr with I_D/I_G ratio between 0.1 to 0.4.^{38, 43} There are certain advantages and disadvantages of using exfoliation techniques for 2D materials synthesis. Exfoliation produces materials with fewer defects, however, yield of monolayer is low. Moreover, absence of any functional groups on exfoliated 2D materials lead to poor interaction between polymer and 2D materials. Size of exfoliated 2D sheets can vary with force. Sheer mixing produce sheets with size in few micrometers, while ultra-sonication produces sheets with size less than 1 micrometer. Liquid exfoliation can be improved with oxidation/functionalization of 2D materials, but can impart significant defects to basal plane of 2D materials. For example, strong oxidizing agents such as KMnO₄/KClO₄ and H₂SO₄/HNO_3, are used to oxidize the graphite surface, this oxidized graphite then can be dispersed in polar solvents to exfoliate graphite into Gr sheets (Hummer method)⁴⁴. Sonication may be further required to facilitate the exfoliation of Gr in the polar solvents. Other 2D materials such as BN, MoS₂, WS₂ have also been synthesized by using this method or its modifications.^{45, 46} A large sheet size can be obtained using this method, which leads to formation of liquid crystal.

Another way to achieve the exfoliation at milder conditions, intercalation of the layered material is a preferred route. For example, lithium intercalation is widely used for exfoliation of MoS₂. A typical procedure involves immersing the bulk MoS₂ in n-butyl lithium (n-BuLi)/hexane solution for few days, which help intercalates the lithium ions between the layers of MoS₂.⁴⁷ This intercalated compound is subsequently transferred to the water, where production of gaseous products helps exfoliate the MoS₂. This process can be improved by modifying the procedure and changing the chemical reagents. For example, electrochemical intercalation process can also be employed to obtain Li intercalated compounds, which significantly reduce the intercalation time for days to hours.^{48, 49} Similarly, solvothermal reaction was exploited for intercalation of n-BuLi at 100 °C in bulk TaS₂. Due to energy provided by high temperature, the intercalation of Li+ was achieved in much shorter time (2 h).⁵⁰ Monolayer of TaS2 was obtained with mere mechanical shaking of lithinated bulk TaS₂ Figure 3(a & b). Other 2D materials such as WS₂ ⁵¹, MoSe₂ ⁵² have also been obtained by using this method. However, this method has certain disadvantages. For example, 2D materials obtained through this method are metallic and extra heating step is required to restore the semiconducting properties of obtained 2D materials. Moreover, Li is a flammable material and monolayer yield is also low.

Figure 2: (a) Schematics showing three types of solvent-based exfoliation techniques.³⁵ Reproduced with permission from ref. 35. Copyright (2021) Elsevier.

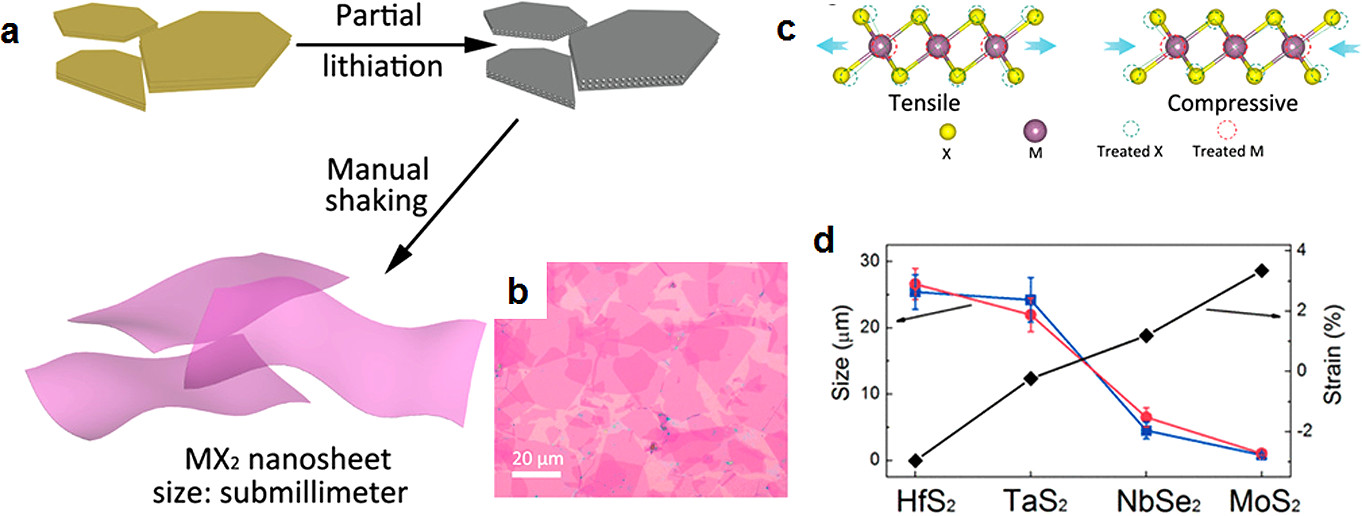

Figure 3: (a) Schematic illustration for the manual shaking exfoliation process of partiallylithiated Li_xMX₂ into single layers. (b) Optical microscopy image of exfoliated single-layer TaS₂ nanosheets on a SiO₂/Si substrate.⁵⁰  Reproduced with permission from ref. 50. Copyright (2017) American Chemical Society.

CVD Synthesis of 2D materials

Compared to liquid exfoliation, CVD is a bottom up synthesis methods. In a typical CVD method, a metal substrate is exposed to a volatile precursor, which decomposes/reacts on the metal surface to produce a 2D materials. Various metal substrates including Cu, Ni, SiO₂ have been used. Choice of the precursor (metallic or non-metallic) depends on the final composition of the 2D material. Using CVD, elementary, binary, tertiary or even quaternary and quinary compounds have been fabricated. Gas flow, temperature and precursors controls the quality of the 2D materials. Summary of key parameters for CVD growth of 2D materials is described in Figure 4. Recently, Zhou et al.⁵³ have demonstrated a molten-salt-assisted CVD method which can be applied for the synthesis of a wide variety of 2D (atomically thin) materials. Crystal size and quality of the materials can be easily controlled by flow of metal (Figure 4). They successfully

Figure 4: Schematic of the key parameters for the CVD growth of 2D materials ranging from elementary substance, binary, and ternary to complicated materials.⁵⁴ Reproduced with permission from ref. 54. Copyright (2020) American Chemical Society.

demonstrated the synthesis of 47 compounds (including 32 binary, 11 ternary, one quaternary, one quinary, and two heterostructured compounds), see Figure 6. While CVD growth can produce variety of 2D materials with high quality, however, this method is not scalable for all the 2D materials. Only handful of 2D materials can be produced on large scale. Apart from large scale production, large scale automatic transfer of CVD grown 2D materials is also another issue. CVD grown materials need to be transferred from growth substrate to desired substrate which involves exposure to chemicals, which can induce lot of impurities during the process. For Gr, roll-to-roll, and batch–to–batch industrial scale production has already been demonstrated. Also scalable transfer methods have been implemented for Gr.³⁷ However, for other 2D materials, large scale production and transfer is still a challenge.

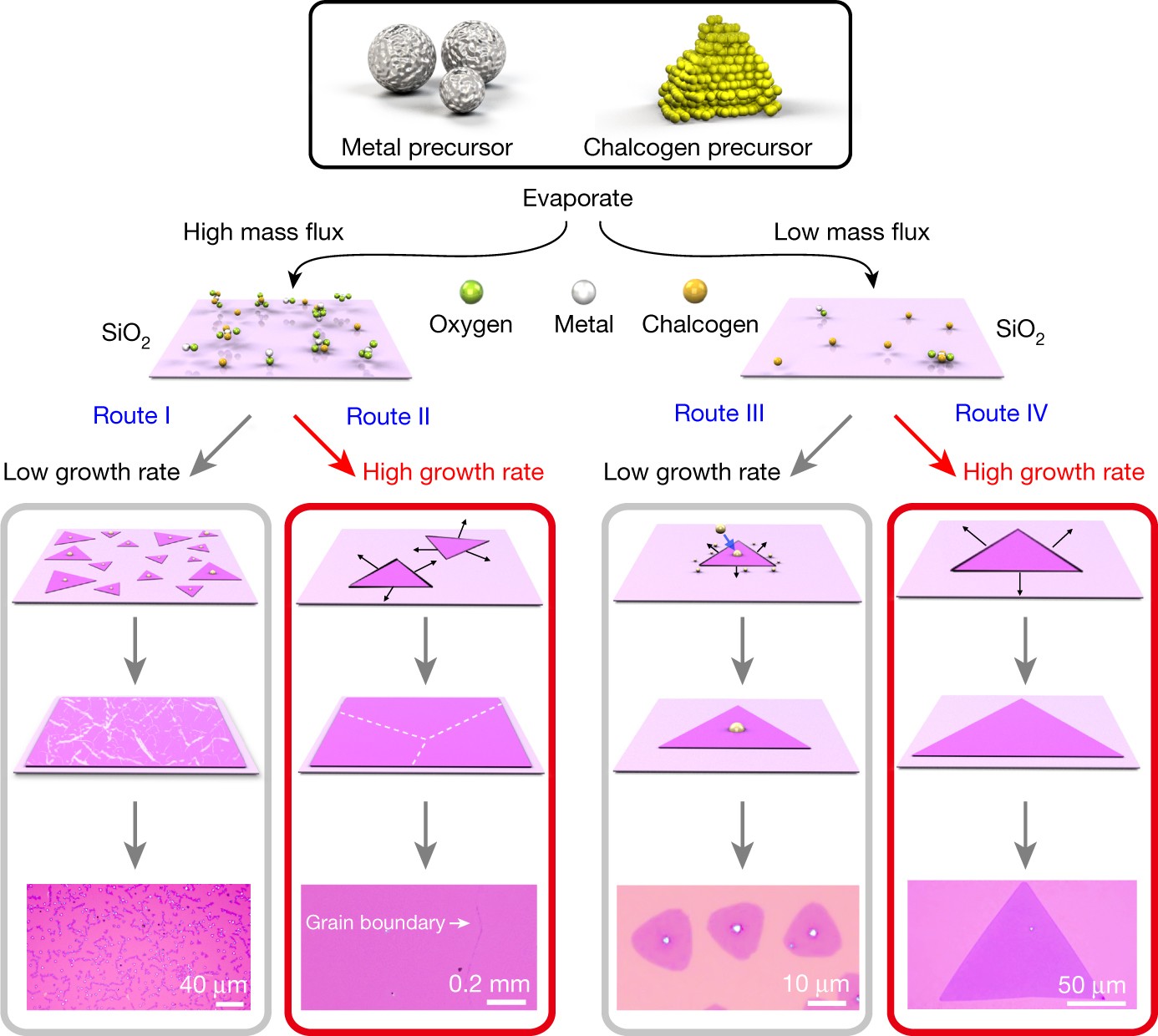

Figure 5: Four different growth routes of 2D TMCs. Route 1 produces monolayer polycrystalline films with smaller grain size. Route II produces monolayer polycrystalline films with large grain size. Route III produces discrete monolayers with smaller crystal size. Route IV leads tomonocrystals with large size.⁵³ Reproduced with permission from ref. 53. Copyright (2018) Nature Publishing Group.

Figure 6: (a) Overview of metals (highlighted in purple) andchalcogens (highlighted in yellow and orange) that can form layered sulfides, selenides and tellurides. (b) Optical images of 47 TMCs synthesized using our method. TMCs that have not been previously synthesized are outlined in blue.⁵³ Reproduced with permission from ref. 50. Copyright (2018) Nature Publishing Group.

PROCESSING OF 2D-FILLER/POLYMER COMPOSITES

Polymers can be mixed with 2D materials with direct compounding, melt compounding, solution mixing or in-situ polymerization. Direct compounding involved direct missing of both solids (polymer and filler) and subsequently hot pressed to obtain final composites. This method is easy but dispersion and homogeneity of the mixture may not be ideal and is seldom used. In melt processing, polymers are melt above or close to their melting temperature and fillers are mixed. Due to high viscosity of polymers, a large sager force is required to disperse the filler properly in the polymer matrix. Twin screw extruders due to their good dispersive/distributive missing capabilities is the most popular equipment for dispersing and processing the polymer composites.⁵⁵ In this technique, under large shear force, fillers get aligned. Zhang et al. fabricated high density polyethylene (HDPE)/BN composites by mixing their different ratios and compounding in corotating twin screw extruder, cut into small pieces and dried, and were subsequently extruded by the multistage stretching extrusion BN sheets were aligned in the extrusion direction with anisotropy index of 480%.⁵⁶ For low viscosity polymers, technique such as mechanical or magnetic stirring might also work.

Figure 7: Schematics showing changes in physical properties in the pre-percolation, percolation, and post-percolation region. Note the rapid change in electrical conductivity and dielectric constant in the vicinity of percolation threshold (V_c).

Liquid phase processing of composites, including solution mixing and in-situ polymerization, is the most commonly used techniques. In solution based mixing, polymer is first dissolved in a solvent and then fillers are introduced with constant stirring. Sonication is often used to disperse the filler in the polymer, however, prolonged sonication can introduce the damage to filler. If the viscosity of the liquid is too low, fillers tend to agglomerate, once the stirring/sonication is stopped. For better dispersion fillers can be modified with different functional groups. In in-situ polymerization, fillers are introduced in the monomer solution. Then monomer is polymerized under constant stirring. This method is associated with better filler dispersion in the polymer matrix due to the better interaction with polymer and filler. To improve/control the filler distribution, dispersion and alignment, various strategies such as (i) the self-assembly based on the LC phase formation in aqueous solutions or liquid polymers; (ii) the forced assembly driven by external forces (tap casting, wet spinning, vacuum assisted filtration, electric field based alignment, magnetic field based alignment, electrophoretic dispersion) and (iii) the assembly directed by well-defined templates (unidirectional freeze casting, bidirectional freeze casting, using 2D and 3D templates) have been employed. Details of these methods can be found elsewhere.

THEORETICAL BACKGROUND ON DIELECTRIC PROPERTIES OF COMPOSITES

For conductive filler, electrical conductivity and dielectric constant can be predicted by percolation threshold. At the filler concentrations lower than a particular filler concentration (pre-percolation), fillers are dispersed in isolation from each other, though some local network exist. At pre-percolation, the electrical conductivity and dielectric properties show negligible effect with the filler concentration. When filler concentration reaches a critical concentration (V_c), global networks start to form in the polymer matrix (percolation threshold) and electrical conductivity and dielectric constant see a sharp increase. After percolation threshold, electrical conductivity saturates against the filler concentration and dielectric constant drops sharply.^{9, 14, 55}

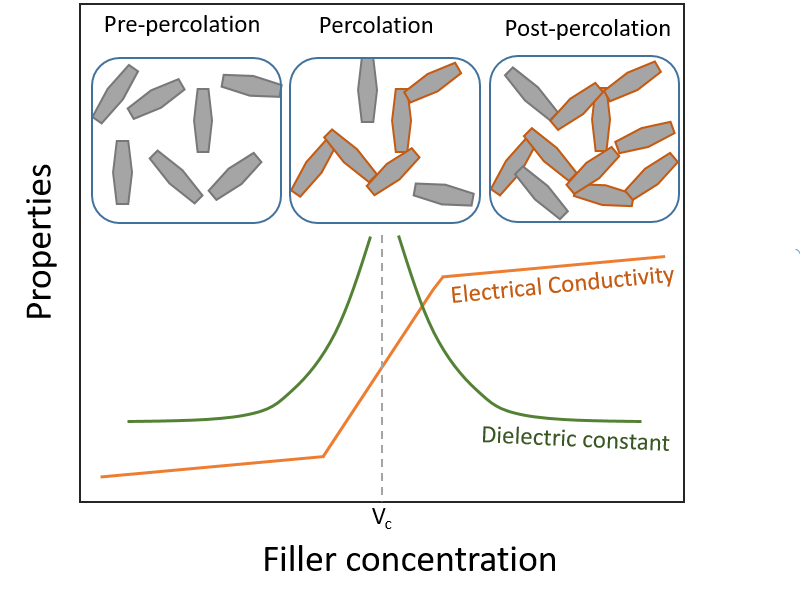

At percolation threshold electrical conductivity and dielectric constant can be expressed as

k∝V-Vc-s

σ∝V-Vct

Where k is the dielectric constant, V is the filler concentration, V_c is the filler concentration at percolation threshold, s and t are critical constants. Value of t is between 1.6-2 for a 3D system and value of s is between 0.8-1.^{9, 14} However, these values are not always observed in practical system.

Percolation threshold for 2D fillers can is given by following equation,

Vc=2πD2t4D+DIP3

Where D_IP is distance between two filler platelets, D is the diameter of the 2D fillers and t is the thickness. In practical, this equation is seldom obeyed, as fillers tend to agglomerate in the polymer matrix.

For non-conductive fillers, the dielectric constant of the composites can be given by the Maxwell-Garnett equation below⁵⁷,

kc=km 1+V (kf-km)A 1-Vkf-km+km×πr2

Where kc, km, and kf are the dielectric constants of the composite, filler and the matrix, composites, respectively. Value of A=1/3. This equation is only valid for the low concentration of fillers, for high filler concentration system, Jaysundere–Smithe quation can be employed, which accommodates inter-filler forces at higher filler concentrations. Lichtenker and Bruggeman equations are also applied in some cases to predict the dielectric constant of non-conductive filler based polymer composites.^{58, 59}

DIELECTRIC PROPERTIES OF 2D FILLERS/POLYMER COMPOSITES

Dielectric properties of conductive 2D-filler/polymer composites

Conductive 2D fillers mainly include MXenes and Gr based materials. 2D Gr fillers can be fabricated as pristine Gr, graphene oxide (GO) or reduced graphene oxide (rGO). Pristine Gr has good crystal structure and hence excellent electrical, which can be imparted to polymer matrix to fabricate the dielectric polymer composites. Close to the percolation threshold Gr sheets form a miacrocapacitor like structures in polymer matrix and due to Maxwell-Wagner-Sillar (MWS) polarization, hence, dielectric constant of the composites increases significantly. Li et al. added graphite nanoplatelets (GNP) to polyvinylidene fluoride (PVDF) matrix to fabricate dielectric composites. Percolation threshold at a low GNP filler concentration of 2.4 wt. % was obtained, as shown in Figure 8a. Near percolation threshold at 1KHz frequency, dielectric constant of 173 and a low loss tangent value of 0.65 was obtained.⁶⁰ As typical of percolative composites, near percolation threshold, conductivity increase significantly with the frequency, while dielectric constant decreases at high frequencies, as shown in Figure 8(a-c). Similarly, Chu et al. reported few layer graphene (FLG) nanosheet/PVDF sandwich composites with dielectric constant as high as 10⁵.⁶¹ Though pristine Gr has good electrical properties, it doesn’t have dangling bonds, hence, its dispersion in polymer matrix is difficult, which can effect reproducibility of the dielectric properties of the polymer composites, and also lead to poor mechanical properties. For better dispersion in the polmyer matrix, pristine Gr was modified with Ionic liquid (GIL) before mixing with PVDF matrix. Percolation threshold of GIL/PVDF composites was 1.86 vol.% and of Gr/PVDF composites was 0.67 vol.%. Compared to Gr/PVDF composites, dielectric constant of GIL/PVDF composites was recorded higher (167 compared to 90 for Gr/PVDF composites) due to MWS polarization at GIL and PVDF interface.⁶² Wang et al. produced hydroxyl-modified graphite micro-sheet and mixed those with PVDF matrix. Dielectric constant value of 6.5 × 10⁵ at test frequency of 100 Hz was obtained at 6 wt.% of fillers. They also obtained a high breakdown strength (E_b) of 0.63 kV/mm and specific energy storage value of 2.07 J/cm³.⁶³ Gr have also been modified with polymers such as polyvinyl pyrrolidone (PVP), polyaniline (PANI), etc., for better dispersion into polymer matrix.⁶⁴ Lv et al. modified graphene nanoparticles (GNPs) with PANI through in-situ polymerization of PANI and obtained GNPs@PANI to subsequently mix with oxidized styrene-butadienestyrene copolymer (SBS-FH), see Figure 9.⁶⁵ GNPs@PANI showed better dispersion in SBS-FH matrix compared to GNPs, as former had a better interaction with polymer due to the diploe-dipole and hydrogen bonding interaction. Since the PANI was dedoped, its coating on GNPs resulted in blockage of direct contact between conductive GNP fillers, which greatly enhances the MWS polarization, which subsequently give rise to large dielectric constant values. Value of percolation threshold and highest possible dielectric constant for GNPs/SBS-FH and GNPs@PANI/SBS-FH was 1.19 vol.% and 9.38 vol.%, and 15.96 and 56.8 @ 1000 Hz, respectively, see Figure 10.

Figure 8: (a) Frequency vs conductivity, (b) frequency vs dielectric constant, and (c) frequency vs loss tangent of GNP/PVDF composites. (d) Dielectric properties of the GNP/PVDF composites against filler concentration at 1 KHz frequency.⁶⁰ Reproduced with permission from ref. 60. Copyright (2010) Elsevier.

Most commonly used Gr is fabricated in the form of GO, where Gr is oxidized with Gr. Presence of oxygen functional groups not only help Go disperses well in the polymer matrix but also open the pathways for further functionalization of the Gr with other materials. Moreover, as mentioned above, low conductivity contact filler contact between GNPs@PANI particle can enhance the dielectric constant, similar result may be obtained for GO, as it has low conductivity compared to pristine Gr. He et al. has prepared GO/PVDF composites with percolation threshold as low as 1 vol.% and dielectric constant as high as 10⁷ was obtained.⁶⁶ GO has been further modified with other materials such as PVP⁶⁷, ionic liquid amine, polyvinyl alcohol (PVA)⁶⁸, phosphorus salt⁶⁹, and p-Phenylenediamine (PPD)⁷⁰ to mix with polymer matrix for better dispersion and improved dielectric properties.

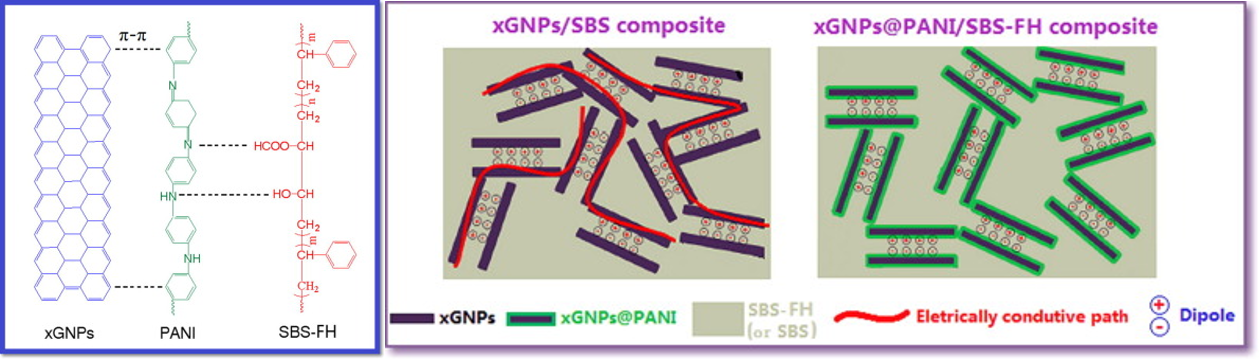

Figure 9: Functionalization scheme of GNPs and dispersion of GNPs and modified GNPs in polymer matrix.⁶⁵ Reproduced with permission from ref. 65. Copyright (2018) Elsevier.

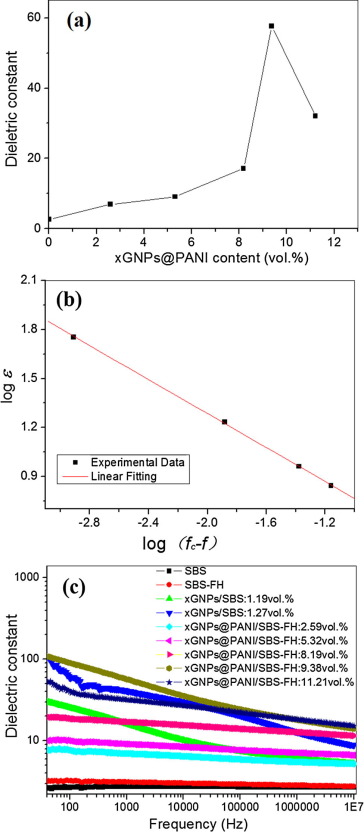

Figure 10: (a) Dielectric constants of xGNPs@PANI/SBS-FH composites as a function of filler content at 1000?Hz. (b) Percolation threshold calculation. (c) Dielectric constant as a function of frequency at different filler contents.⁶⁵ Reproduced with permission from ref. 65. Copyright (2018) Elsevier.

Between two extremes of Gr, i.e., pristine Gr and GO, reduced GO (rGO) is a better choice as a filler as it has enough functional groups to aid the better dispersion of Gr in polymer matrix and also retains most of the excellent electrical properties of pristine Gr. Yuan et al. fabricated rGO/PDMS composites with dielectric constant value of 753 at the percolation threshold, which is 260 times higher than that of pure PDMS.⁷¹ Liu et al. demonstrated that dielectric constant of rGO based composites may be lower than Gr based composites, however, dielectric constant increase significantly for GO composites with increases reduction. For rGO with C/O ratio of 2.79 dielectric constant of polyimide (PI) composites was 10, while for rGO with C/O ratio of 2.96 dielectric was about 60, clearly indicating dielectric constant increased with degree of reduction.⁷² Due to use of different polymer matrix and differently prepared Gr, GO, rGO and functionalized Gr, it is impossible to directly compare the effect of change in Gr structure on dielectric properties from different literature sources. In an attempt to systematcailly investigate the effect of Gr structure on dielectric properties of composites, Li et al.⁷³ produced five graphene derivatives, namely, GO, rGO, electrochemical exfoliated graphene (EG), and 3,4,9,10-perylenetetracarboxylic acid (Py)-modified rGO (PyrGO) and EG (PyEG) (Figure 11), and studies their effect on the dielectric properties of PVDF composites.⁷³ Amongst all the compoistes, PyEG/PVDF composites showed best dielectric constant (Figure 12). At percolation threshold, PyEG (0.74?vol%)/PVDF composites exhibited a dielectric constant of 480?at 1?kHz, with a relatively low dielectric loss of 0.27. GO had lower conductivity, rGO and PyrGO had relatively better conductivity than GO but lower dispersion, EG had good conductivity but poor dispersion, PyEG had good dispersion due to presence of Py and also had good electrical properties due to pristine structure of EG as interaction between Py and EG is non-covalent. Hence, PyEG had best dielectric properties.

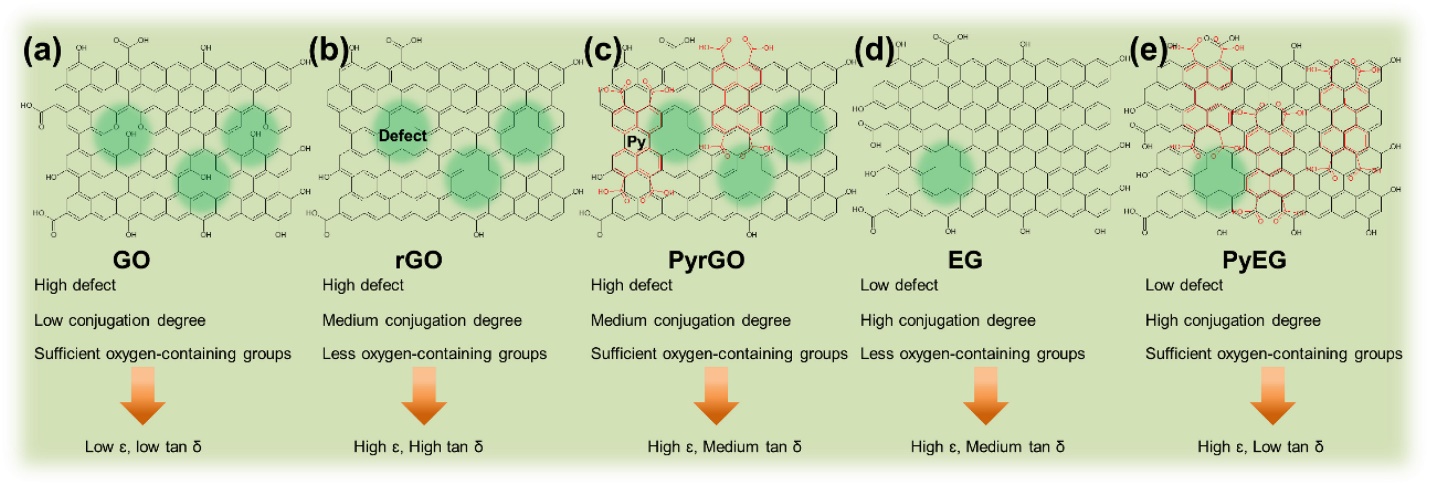

Figure 11:  The structure illustration and characteristics of (a) GO, (b) rGO, (c) PyrGO, (d) EG and (e) PyEG and corresponding dielectric behaviors of their PVDF composites.⁷³ Reproduced with permission from ref. 73. Copyright (2019) Elsevier.

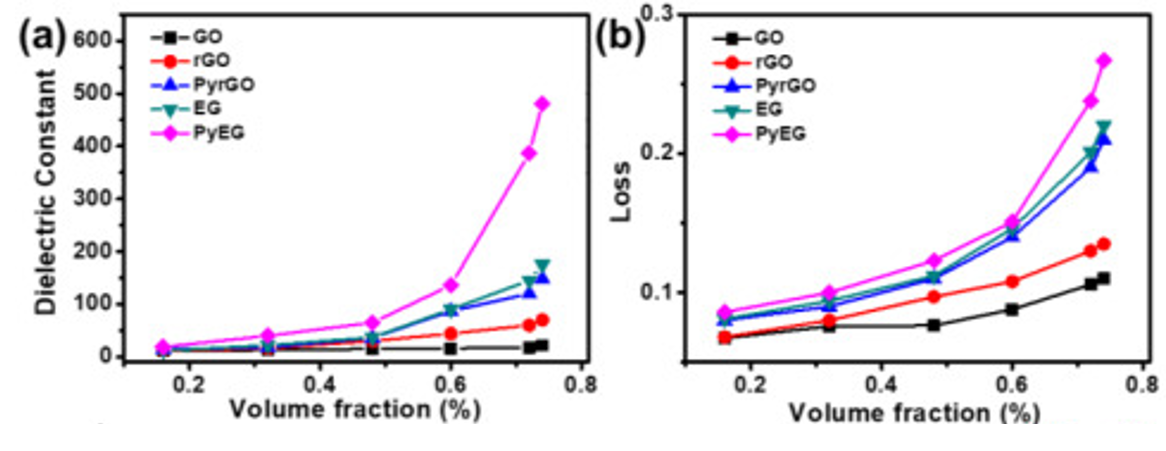

Figure 12: The dielectric constants and (b) losses of GO/PVDF,rGO/PVDF, PyrGO/PVDF, EG/PVDF and PyEG/PVDF composites with different filler contents.⁷³ Reproduced with permission from ref. 73. Copyright (2019) Elsevier.

MXenes are other members of 2D family, which have conducting properties. Initially, explored for energy storage applications, MXenes have slowly found their applications for polymer composites due to their excellent electrical properties. Tiu et al. have reported Ti₃C₂T_x/poly(vinylidene fluoridetrifluoro-ethylene-chlorofluoroehylene) (P[VDF-TrFE-CFE]) with dielectric constant as high as 10⁶ at 1HZ frequency at relatively high percolation threshold of 15.3 wt.% of MXene due to the relatively low average lateral sheet size of 4.5 µm. The percolation threshold further increased to 16.8 wt.% when the size further reduced to 1.5 µm and dielectric constant reduced to 9120.⁷⁴ It must be mentioned here that Gr sheets have relatively large size and hence need relatively low filler concentration to achieve percolation threshold compared to MXenes. GNPs with large lateral sizes of 25 µm delivered a giant k value of over 10⁷ at a much lower filler loading of 2.3 vol% than the Ti₃C₂T_x nanosheets.⁷⁵ However, it must be noted that 2D fillers, anyways, are better than 0D, 1D and 3D fillers.

In addition to single phase 2D conductive fillers, 0D, 1D filler and other conductive and non-conductive fillers can also be added to polymer to fabricate multiphase polymer composites. Example of such composites are carbon nanotubes/GNP/Thermoplastic urethane (TPU)⁷⁶, Gr/PDA@Ag/TPU⁷⁷, BT/Ti₂C₃T_x/PVDF⁷⁸, α-SiC/Ti₂C₃T/ PVDF⁷⁹ where a third phase is added to binary system to improve the dielectric properties.

Dielectric properties of non-conductive 2D-filler/polymer composites

While conductive filler based percolative composites can achieve high dielectric constant at low filler concentration, dielectric loss of such composites is usually high. Alternate strategy to improve the dielectric composites is to add insulating 2D fillers. Compared to conductive filler, addition of non-conductive fillers will moderately increase the dielectric consant but then dielectric loss is low, which results into high E_b and high energy density (U_d). Boron nitride (BN) is a representative 2D non-conductive filler. BN is a wide band gap filer with Eb of 800mV/m. BN nanosheets have been mixed with various polymer matrices including chitin⁸⁰, poly(vinylidene fluoridechlorotrifluoroethylene) (P[VDF-CTFE])⁸¹, PMMA⁸²,  poly(aryl ether sulfone)⁸³, etc. With addition of BN nanosheets, E_b of Chitin and P[VDF-CTFE] was increased by 40% and 85%, respectively.^{80, 81} Similarly, with addition of BN, greater energy density at good E_b has been reported for polymer composites. BN/PMMA composites at 10 wt.% BN laoding exhibited U_d of 3.5 J/cm³ at 400 MV/m, with an efficiency of 86%.⁸² BN/ poly(aryl ether sulfone) Ud of 4.2 J/cm³ at 500 MV/m ,with an efficiency of 86%.⁸³ Similarly, BN/divinyltetramethyldisiloxane-bis(benzocyclobutene) (c-BCB) composites exhibited U_d of 1.8 J/cm³ and an efficiency of about 70% at 403 MV/m. In addition to excellent dielectric properties, BN based polymer composites also show good temperature stability of dielectric properties. Mica is another insulating 2D material which can be added to polymers to reinforce their dielectric proeprties. Upon addition of Ultra-sonic exfoliated mica sheets were to PMMA grafted terpolymer (P(VDF-TrFE-CTFE)-g-PMMA), discharging efficiency of the composites reached ∼78% under 250?MV/m. The U_d of the optimized composite reaches 9.6?J/cm³, which is nearly 290% that of the pristine terpolymer.⁸⁴ 2D metal oxides and hydroxide have also been used as fillers for improvement of polymer dielectric properties. Ji et al.⁸⁵ studied Ni(OH)₂ morphological and dielectric properties of Ni(OH)₂ nanoplatelets and flowers based PVDF composites. Composites showed 300% enhancement in U_d. Such enhancement was result of linkages between filler and PVDF due to presence of OH groups on filler, high specific surface area of filler which lead to enactment of β-phase polarization, and less concentrated electric filed due to high anisotropy of fillers in the matrix.⁸⁵ 2D ZrO₂ ⁸⁶ and Al₂O₃ ⁸⁷ fillers have also been introduced to the polymer matrix to improve dielectric properties. While exploring effect of Al₂O₃ on c-BCB, Li et al.⁸⁷ also demonstrated superior efficiency of 2D nanoplatelets (NPLS) compared to 0D nanoparticles (NPs)and 1D nanowires (NWs) of Al₂O₃ in enhancing dielectric properties. Authors demonstrated that compared to 0D particles and 1D nanotubes, 2D NPLS of Al₂O₃ is most effective in uniformly dispersing the applied electric field (Figure 13a) and in hindering the growth of breakdown phase under high external electric fields and elevated temperatures (Figure 13b), which results in highest E_b and discharge efficiency for 2D Al₂O₃ at the same filler loadings (of NPs and NWs) and temperature.

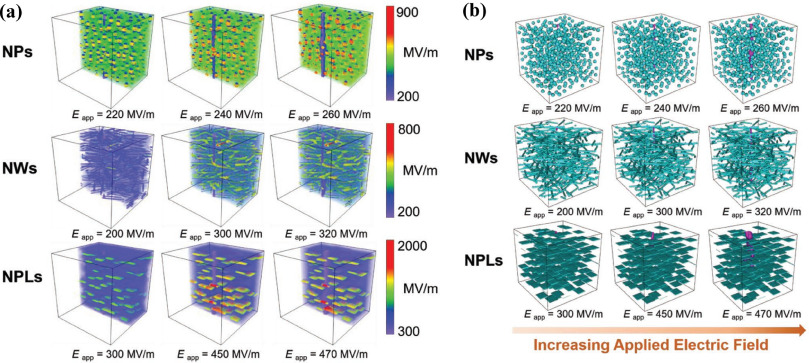

Figure 13:  (a) Electric field distribution and (b) corresponding predicted breakdown path evolution computed by phase-field simulations of the c-BCB nanocomposites with 7.5vol% Al₂O₃ nanoparticles, nanowires and nanoplates at 150 °C and varied applied electric fields.⁸⁷ Reproduced with permission from ref. 87. Copyright (2019) WILEY-VCH.

Barium titanate (BaTiO₃ or BT) is an important ferroelectric ceramic and is widely used to enhance the dielectric properties of polymer matrices.^{88, 89} With addition of mere 1 wt.% addition of BaTiO₃ nanoplates, U_d was increases by 100% to 9.7 J/cm³. 2D fillers of similar class including 2D NaNbO₃ and SrTiO₃ have been employed for fabricating polymer dielectric composites.^{90, 91} Similar to BaTiO_3, with1 wt.% addition of SrTiO₃, U_d was increases by 100% to 9.48 J/cm³.⁹⁰ In addition to these fillers, other 2D fillers such as transition metal dichalcogenides (TMDCs)^{92, 93}, clay minerals⁹⁴, and negatively charges metal oxide^{95, 96} have been successfully employed for fabrication of 2D/polymer dielectric composites.

Similar to conductive fillers, multiphase composites of insulating fillers have also been fabricated. Examples of such system are MoS₂/Al flakes/PVDF⁹⁷, WS₂/BT nanoparticles/epoxy⁹⁸, poly(vinylidene fluoride-hexafluoropropylene) (P[VDF-HFP])/montmorillonite (xMMT)/Ag⁹⁶, Na⁺MMT/ionic liquid/PVDF⁹⁹,  BT/BN/polyetherimide (PEI)¹⁰⁰, and BT/BN/PVDF¹⁰¹. Scope of dielectric improvement in multiphase polymer composites containing insulating fillers is more than the conducting filler base such systems. For example, BN nanosheets and BT were dispersed in N, N-dimethylformamide (DMF) and then mixed together to BT@BN particles which were then mixed with PVDF matrix. Using these hybrid fillers, E_b improved to 580 kV/mm, and high energy density of 17.6 J/cm³ was obtained for 5 wt.% filler concentrations, which was better than binary phase composites, see Figure 14.¹⁰¹ The simulated (Figure 14c-e) maximum volume current densities in the composites of BT@BN/PVDF, BN/PVDF, and BT/PVDF, are 1.12E^-11, 1.16E^-11, and 9.17E^-10 A/cm², respectively. These current densities are directly related with breakdown process. As a result, BT@BN/PVDF composites achieved higher E_b compared to binary phase composites.

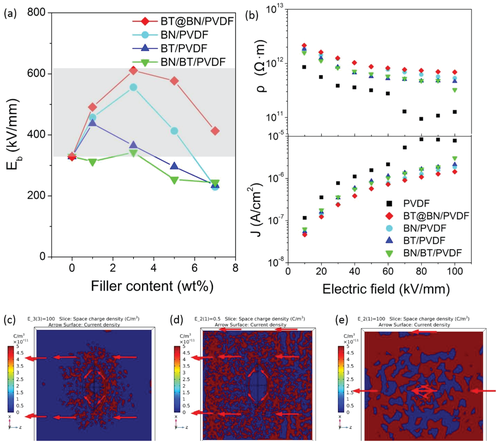

Figure 14: (a) Variation of E_b with the filler content of the four types of films. (b) Resistivity and leakage current density as a function of the electric field of the PVDF and the composite films filled with 3 wt% of fillers. (c–e) The simulated space charge density distribution in the PVDF composites filled with BT@BN, BN, and BT, respectively. The arrows indicate the direction of the electric field. The particles are in the middle position of the simulated area.¹⁰¹ reproduced with permission from ref. 101. Copyright (2018) WILEY-VCH

Dielectric properties of layered 2D-filler/polymer composites

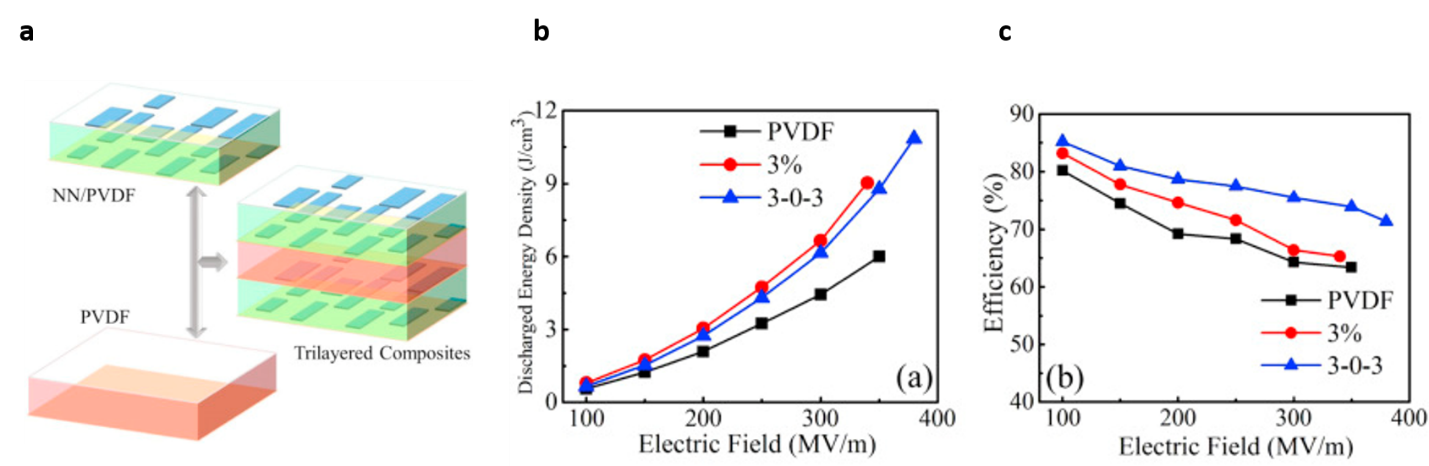

Figure 15: Figure 15. (a) Fabrication of trilayered architecture composite films. (b) Discharged energy density, (c) efficiency of pristine PVDF, 3 vol. % NN/PVDF, and 3-0-3 composite film.⁹¹ Reproduced with permission from ref. 91. Copyright (2017) Elsevier.

Mixing 2D fillers with polymers is an easy straightforward approach to prepare the composites with dielectric properties. However, for such composites control over interface between fillers and polymers is not easy. Polymer-filler interface is probably the most important parameter to obtain the good electrical properties. Alternate route is to fabricate multilayered polymer composite structures to obtain high dielectric constant and large E_b. Both three layered and more than three layered composites have been fabricated for dielectric properties. Pan et al. fabricated 2D NaNbO (NN) platelets/PVDF composites for outer layers and pristine PVDF was sued as middle layer. Then all the layers were stacked according to the scheme shown in Figure 15. A high discharge energy density of 13.5 J cm at 400 MV mpower density of 2.68 MW cm, discharge energy efficiency of 66.9%, and ultra-fast discharge speed of 0.127 μs was obtained. Figure 15 band c show the discharge energy density and efficiency of 3% NN/PVDF composites and 3-0-3 layered composites. 3 in 3-0-3 represents the filler volume percentage, and 0 represents the pristine PVDF. In these composites middle layer experience, the high electric filed and also prevent electrical field channels, which increase overall electric field tolerance capacity of the layered composites. Titanate filled PVDF composites as middle layer and pristine PVDF as outer layer were fabricated with 11.69 J cm and an excellent discharge efficiency of 78.95%. Composites with more than 3 layers composing of BN nanosheets and Ba(Zr_0.21Ti_0.79)O₃ nanofibers (BZT NFs)¹⁰³ layers, rGO-P1/BN-PI¹⁰⁴ layers, and P(VDF-HFP)/BN¹⁰⁵ layers have been reported with significantly improved dielectric properties. In some cases, filler layer has also been used in multilayered structures. Zhu et al.¹⁰⁶ fabricated layered composites with BN as middle layer and PVDF as outer layer. Composites were fabricated through a simple layer-by-layer solution-casting process. During the casting process, BN nanosheets were aligned along the in-plane direction. Compared to the pristine PVDF, the composite films show remarkably suppressed leakage current, resulting in a high breakdown strength and a superior energy density which are 136% and 275%, respectively. Liu et al.¹⁰⁷ used BN nanosheets as outer layer to sandwich polycarbonate (PC) layer. The energy storage density of the composites was 5.52 J/cm³ under 500 MV/m electric field at 100 ?, which is 15.10% higher than that of pure PC.

Figure 16: Processing of PVDF/BNnanosheets/PVDF layered composites.¹⁰⁶ Reproduced with permission from ref. 106. Copyright (2019) Elsevier.

SUMMARY AND OUTLOOK

OP2D materials has great potential for polymer dielectric composites due to their superior electrical properties and high surface area to interface with polymer matrix. For use of 2D polymer for composite applications, large scale high quality synthesis of 2D quality is a big challenge. Current synthesis methods are trade-off between large scale synthesis and structural quality of 2D materials. Liquid based synthesis methods can produce ton scale 2D materials but quality is poor due to presence of structural defects arising from violent chemical reactions. CVD can produce good quality 2D materials but scalability is a serious issue, as materials can only be grown as sheets. Currently, for polymer composites, liquid synthesis of 2D materials is preferred route, however, quality of 2D materials need to be improved in the future. For dielectric properties, conductive 2D-fillers (such as Gr, MXenes) do offer large dielectric constant values at low filler concentrations, but these composites have large dielectric loss values, low breakdown strength and low energy density. Moreover, their properties are significantly influenced by frequency and external stimuli such as temperature and pressure. On the other hand, non-conductive 2D-fillers based polymer composites offer low dielectric constant value even at relatively large filler concentrations, but their dielectric loss value is very low, hence breakdown strength and energy density values are good. Moreover, dielectric properties of these composites are stable against temperature, pressure and frequency. Dielectric properties of both conductive and non-conductive 2D filler based composites can be fine-tuned by the use of multi phase and layered composites. However, to do that, a fine understanding of structure-property relationship of multi phase and layered composites need to be developed and should be the focus of future research.
